Five Key Factors for Selecting the Right Process Valve

In industrial processes, choosing the right valve is not just about cost—it is about safety, reliability, energy efficiency, and long-term performance. In many applications, multiple valve types may work, but the best choice depends on technical priorities such as line size, pressure and temperature ratings, cycle life, footprint, and operating speed.

This article expands on these five factors and provides a practical, engineering-based framework to guide valve selection.

LINE SIZE: WHEN DIAMETER ≥ 2”

For line sizes of 2 inches (DN 50) and larger, butterfly and gate valves often become the most economical solutions.

Butterfly valves are lightweight, cost-effective, and easy to automate with actuators.
Gate valves are preferred for slurry or particulate media and where linear throttling is needed.

Engineering Note – Pressure Drop:
The Darcy–Weisbach equation highlights the impact of diameter on frictional losses:
ΔP = f · (L/D) · (ρv²/2)

PRESSURE–TEMPERATURE RATINGS

For high-pressure and high-temperature service, ball valves and angle seat valves provide the most reliable shutoff and sealing characteristics.

Ball valves: robust body, metal seats, suitable for hydrocarbon and chemical service.
Angle seat valves: excellent thermal and pressure tolerance, but limitations at very large sizes.

Stress Consideration (Thin-Walled Cylinder):
σθ ≈ (P · D) / (2t)

CYCLE LIFE: HIGH-SPEED, HIGH-FREQUENCY APPLICATIONS

Applications such as filling, dosing, or bottling lines may require thousands of valve cycles per day.

Angle seat valves (pneumatic actuation) and solenoid valves (electric actuation) deliver long cycle lives and very fast response times.
Ball and butterfly valves are sufficient for low-cycle applications such as process isolation.

Engineering Note – Water Hammer:
Fast-closing valves increase water hammer risks. Actuator ramp times should be tuned, or non-slam designs selected, to reduce surge pressures.

FOOTPRINT AND SPACE CONSTRAINTS

In compact skid-mounted systems, modular units, or OEM equipment, angle seat and solenoid valves are preferred due to their small footprint and integrated actuation.

Reduced weight lowers structural stress.
Smaller size simplifies maintenance and installation.

OPERATING SPEED

Angle seat valves provide the fastest open/close times, improving precision in dosing applications.
Solenoid valves also offer high switching speed but are limited by Cv (flow coefficient).
Larger valves (butterfly, gate) have slower actuation speeds but are acceptable in isolation duties.

HYDRAULIC SIZING: CV, VALVE AUTHORITY, AND CONTROL STABILITY

Flow Coefficient Equation (US units):
Q = Cv · √(ΔP / Gf)

Where:
Q: flow rate
Cv: valve flow coefficient
ΔP: pressure drop
Gf: specific gravity

Valve Authority:
N = ΔPvalve / ΔPtotal
For control valves, an authority between 0.3 and 0.7 is usually recommended for stability.

MATERIAL AND MEDIA COMPATIBILITY

Stainless steel, bronze, and high-performance polymers should be matched to the fluid’s chemical and temperature properties.
For abrasive or slurry service, gate valves and hardened seat designs are preferred.
For clean steam or hygienic service, angle seat or sanitary ball valves are most suitable.

AUTOMATION AND ACTUATION

Pneumatic actuators: fast, safe, explosion-proof.
Electric actuators: easy integration, low maintenance.
Hydraulic actuators: high torque, suitable for large valves.

Butterfly and gate valves in large diameters are usually the most economical to automate.

QUICK COMPARISON MATRIX

Factor / Valve Type	Ball	Butterfly	Gate	Angle Seat	Solenoid
≥ 2” line size	Moderate	High	High	Low	Low
High P/T rating	High	Medium	Medium	High	Low
Cycle life	Medium	Medium	Low	Very High	High
Compact footprint	Medium	Medium	Low	High	High
Operating speed	Medium	Medium–High	Low	Very High	High
Slurry media	Low–Medium	Medium	High	Medium	Low
Automation cost	Medium	High	Medium	High	High

STEP-BY-STEP VALVE SELECTION GUIDE

Define line size, pressure, temperature, and flow range.
Assess media characteristics: clean, corrosive, or particulate.
Define function: on/off, throttling, or directional control.
Determine cycle frequency and response time requirements.
Check space limitations and installation constraints.
Select actuation method (manual, pneumatic, electric, hydraulic).
Compare total cost of ownership (TCO), not just purchase price.

CONCLUSION

There is rarely a single “correct” valve for every case. Instead, multiple valve types may be suitable, and the best choice comes down to balancing line size, pressure-temperature requirements, cycle life, footprint, and actuation speed.

Butterfly/Gate → cost-effective for ≥ 2” pipelines
Ball/Angle Seat → reliable under high P/T
Angle Seat/Solenoid → best for fast, high-cycle operations
Compact valves → ideal for skid-mounted systems

By combining hydraulic calculations, material compatibility, automation needs, and lifecycle cost, engineers can make data-driven decisions that ensure safe, reliable, and efficient valve operation.

29 August 2025

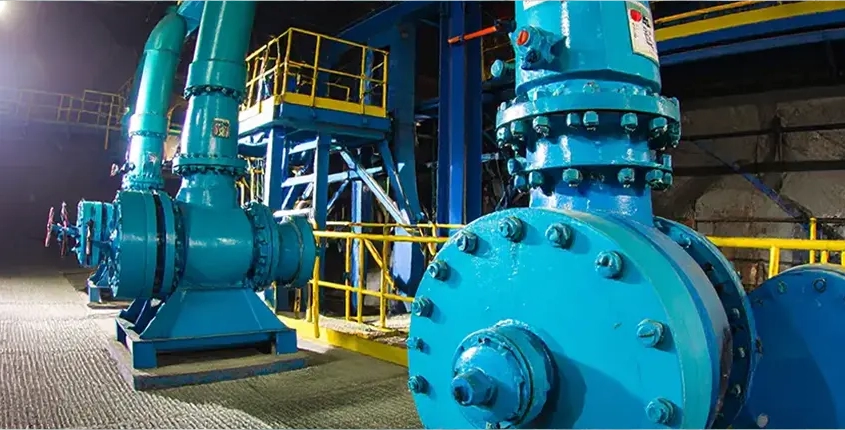

Improving the Efficiency and Reliability of Vertical Pumps

Productivity

Vertical suspended centrifugal pumps are widely used in industrial facilities where high flow rates and large heads are required. While these pumps are often considered “reliable workhorses,” they can lose efficiency and suffer premature failures if operated outside their design limits, neglected in maintenance, or fitted with substandard spare parts.

This article explores the key engineering factors that affect vertical pump performance and provides strategies to extend service life and maximize efficiency.

OPERATING NEAR THE BEST EFFICIENCY POINT (BEP)

Every centrifugal pump has a Best Efficiency Point (BEP) — the operating condition where hydraulic balance, energy use, and component stress are optimized.

Operating close to the BEP results in:

Reduced vibration
Extended bearing and seal life
Lower energy consumption

Hydraulic Power Equation:

Ph = (ρ · g · Q · H) / 1000

Where:

Ph = Hydraulic power (kW)
ρ = Fluid density (kg/m³)
g = 9.81 m/s²
Q = Flow rate (m³/s)
H = Total dynamic head (m)

Engineering Tip: Ideally, pumps should operate within 85–110% of their BEP flow rate.

MINIMUM FLOW AND CAVITATION RISK

Centrifugal pumps must not run below a certain minimum flow rate. Low-flow operation leads to fluid recirculation, overheating, and cavitation.

Available NPSH Calculation:

NPSH_available = (P_atm - P_vap) / (ρ · g) + (h_s - h_f)

Where:

P_atm: Atmospheric pressure
P_vap: Vapor pressure of fluid
h_s: Static suction head
h_f: Friction losses

If NPSH_available < NPSH_required, cavitation is inevitable.

Flow vs. Risk Table:

Operating Flow	Likely Outcome
100% of minimum flow	Normal operation
70–80%	Increased vibration/heat
<50%	Cavitation, bearing wear
<30%	Severe impeller/gasket damage

SPARE PARTS AND MATERIALS

The longevity of vertical pumps depends heavily on the quality of spare parts.

Avoid generic replicas; engineered upgrades often improve performance.
Material selection (e.g., stainless steel, bronze, polymer coatings) is essential in corrosive or abrasive applications.
Low-cost replicas may save money initially but increase downtime and energy losses long term.

BEARING DESIGN AND LUBRICATION

Bearings and their lubrication system are critical to pump reliability.

Lubrication types: oil bath, grease, or process-fluid lubrication.
Insufficient lubrication leads to higher friction. A 10 °C temperature rise in bearings can cut service life by 50%.

SEALING SYSTEMS AND ALIGNMENT

Seals must match the process conditions (pressure, temperature, chemical compatibility). Incorrect packing or mechanical seal selection can cause leakage, energy loss, and safety hazards.

Additionally, installation and alignment are vital. Even small shaft misalignments increase vibration and reduce seal life dramatically.

CONCLUSION

The long-term efficiency and reliability of vertical pumps depend not only on correct sizing but also on operating discipline and proper maintenance practices.

Keep operation near BEP
Maintain minimum flow rates
Prevent cavitation with correct NPSH margins
Use engineered spare parts and robust materials
Ensure proper lubrication, sealing, and alignment

By applying these principles, facilities can significantly reduce energy consumption, minimize downtime, and maximize pump reliability.

28 August 2025

How to Prevent Reverse Flow in Piping Systems: Design, Valve Selection, and Control Strategies

Maintenance, Valve Comparisons, Valve Selection

Reverse flow in piping systems can trigger water hammer, cavitation, leaks, and even catastrophic equipment damage. The root causes are usually pressure fluctuations or sudden changes in flow direction. By combining the right check valve design, proper hydraulic analysis, and advanced control strategies, operators can minimize the risks associated with reverse flow.

THE RISKS OF REVERSE FLOW

Water Hammer: When flow is abruptly stopped or reversed, shock waves travel through the pipeline. These pressure spikes stress welds, seals, and supports, often resulting in loud vibration and mechanical failure.

Cavitation: Local pressure drops below vapor pressure, creating vapor bubbles. Their collapse in high-pressure zones leads to pitting, seal wear, and pump impeller erosion.

Valve Slam and Leakage: Swing check valves are prone to slamming against the seat during backflow events, accelerating wear and increasing the chance of fugitive emissions.

Overpressure and Contamination: Repeated reverse flow generates high-frequency pressure surges. These can exceed design limits, damage fittings, and increase contamination risks in potable water or chemical pipelines.

HYDRAULIC FUNDAMENTALS: QUANTIFYING THE IMPACT

Joukowsky Equation (water hammer pressure rise):
ΔP = ρ · a · Δv

Where:
• ρ = fluid density (kg/m³)
• a = wave speed (m/s)
• Δv = sudden change in velocity (m/s)

Darcy–Weisbach (frictional pressure loss):
ΔP = f · (L / D) · (ρv² / 2)

These equations highlight why smoother surfaces, reduced velocity changes, and controlled closure times are critical to mitigating reverse flow damage.

CHOOSING THE RIGHT CHECK VALVE

Check valves are the first line of defense against reverse flow. Different designs behave differently:

Valve Type	Closing Dynamics	Water Hammer Risk	Typical Applications
Swing	Gravity/pressure driven, long stroke	High – prone to slam	Simple installations, non-critical duty
Spring-Loaded	Positive, rapid closure with spring force	Low	Vertical or horizontal service, clean fluids
Silent / Non-Slam	Short-stroke piston with spring	Very Low	High-pressure water, chemical lines
Double Check	Dual barrier	Low	Low-risk systems (irrigation, domestic water)

Tip: The valve’s cracking pressure must match process conditions. Too low = chatter; too high = excessive pressure loss.

ADVANCED SOLUTIONS: ASSISTED VALVES AND VACUUM BREAKERS

Power-Assisted Valves (PAV): Actuated valves (electric, hydraulic, pneumatic) can provide controlled closure during pump trips or flow disturbances. When paired with a check valve, they absorb surge energy and prevent severe water hammer.

Vacuum Breakers: In low-pressure scenarios, vacuum conditions can form and promote cavitation. Installing air-admittance valves or vacuum breakers prevents collapse by allowing controlled air entry where tolerated.

BEST PRACTICES FOR DESIGN AND OPERATION

• Analyze hydraulic profiles (wave speed, closure time, velocity).
• Install check valves close to pumps; use spring-loaded types in vertical lines.
• Opt for damped or slow-closing actuators instead of abrupt shutoff.
• Reinforce pipelines with supports, expansion loops, and anchors to reduce resonance.
• Implement filtration and flushing to prevent debris from damaging valve seats.
• Follow industry standards and codes to ensure compliance and long-term reliability.

CONCLUSION

Reverse flow is not just a nuisance—it is a major operational and safety concern that can shorten equipment life and increase costs. By selecting non-slam or spring-loaded check valves, integrating power-assisted closures, and applying sound hydraulic design, facilities can minimize water hammer, cavitation, leaks, and contamination risks. A proactive design and maintenance strategy ensures safer, more efficient, and more reliable piping systems.

27 August 2025

The Benefits of Combined Heat and Power (CHP) Systems for Commercial and Industrial Facilities

Energy Management and Efficiency, Industry 4.0 and Smart Energy Systems

As energy costs rise and sustainability becomes a priority, commercial and industrial facilities are looking for smarter ways to manage their energy use. Combined Heat and Power (CHP) systems have emerged as one of the most effective solutions. By generating both electricity and useful thermal energy from the same fuel source, CHP systems can achieve efficiencies of more than 80%, far surpassing conventional power generation.

HIGHER ENERGY EFFICIENCY

In conventional systems, electricity is generated in a power plant and heat is produced separately in boilers. Much of the heat from electricity generation is wasted. CHP systems capture and reuse this heat for hot water, steam, or even cooling through absorption chillers.

Efficiency Comparison:
Traditional electricity + boiler system: 45–50% efficiency
CHP system: 75–85% efficiency

This integrated approach lowers fuel consumption, which directly translates into reduced operating costs.

COST SAVINGS

Energy costs represent a significant portion of operating expenses in both commercial and industrial settings. CHP systems reduce utility bills by producing power on-site and reusing waste heat.

They also insulate facilities from electricity price volatility by reducing dependence on the grid. Over time, the Total Cost of Ownership (TCO) for CHP is lower compared to conventional solutions, making it a financially sustainable investment.

ENERGY SECURITY AND RELIABILITY

For facilities where uptime is critical, power interruptions can be costly or even dangerous. CHP provides:

On-site generation to reduce reliance on the grid
Backup power capabilities for mission-critical operations
Scalable solutions that adapt to changing energy demands

Hospitals, data centers, and manufacturing plants benefit particularly from the reliability and resilience that CHP systems provide.

ENVIRONMENTAL AND SUSTAINABILITY ADVANTAGES

CHP supports corporate sustainability goals by reducing emissions and maximizing fuel efficiency.

Lower fuel use = reduced CO₂ emissions
Waste heat recovery = smaller carbon footprint
Compatibility with renewable fuels such as biogas or biomass

As more organizations pursue carbon reduction targets, CHP provides a practical pathway toward meeting those goals.

FLEXIBILITY ACROSS APPLICATIONS

CHP systems are adaptable to many different facility types and scales:

Commercial buildings: hotels, office complexes, shopping centers
Industrial sites: chemical plants, textile mills, food and beverage facilities
Campus and district energy systems: universities, hospitals, municipalities

This versatility makes CHP an attractive solution for a wide range of industries.

CONCLUSION

Combined Heat and Power (CHP) systems offer a powerful combination of efficiency, cost savings, energy security, and environmental benefits. By capturing and reusing heat that would otherwise be wasted, facilities can significantly reduce fuel consumption, lower emissions, and protect themselves from energy price volatility.

For commercial and industrial operations seeking to remain competitive while meeting sustainability targets, CHP provides a proven, future-ready solution.

26 August 2025

The Importance of Fluid Characteristics in Piping Material Selection

Industrial Valves, Productivity

In industrial process systems, piping materials are more than just conduits for transporting fluids. They directly influence system reliability, efficiency, safety, and long-term operating costs. While cost and mechanical strength are important, the most critical factor in selecting the right pipe material is the nature of the fluid being transported.

Improper material selection can lead to premature failures, corrosion, high maintenance costs, and even safety hazards. This article explores how fluid characteristics impact material selection, compares common pipe materials, and provides engineering insights to ensure long-lasting piping systems.

HOW FLUID PROPERTIES AFFECT PIPE MATERIAL SELECTION

Each fluid has unique physical and chemical properties that determine material compatibility. The most influential factors are:

Temperature (T): Materials expand or weaken at elevated temperatures. A pipe must maintain strength and tightness across the entire operating range.
Pressure (P): Internal pressure resistance is defined by hoop stress, calculated as:
σ = (P · D) / (2 · t)
Where:
σ = hoop stress (MPa)
P = internal pressure (Pa or bar)
D = pipe outside diameter (mm)
t = wall thickness (mm)
Chemical compatibility: Acids, bases, solvents, and chlorinated media require corrosion-resistant materials.
Presence of solids: Fluids with abrasive particles accelerate erosion and shorten service life.
Viscosity & density: Higher viscosity fluids increase friction losses, requiring more pumping energy.

COMPARISON OF COMMON PIPING MATERIALS

The table below summarizes the advantages and limitations of frequently used piping materials:

Material	Advantages	Limitations	Typical Applications
Carbon Steel	High pressure resistance, low cost	Prone to corrosion, heavy	Steam lines, mechanical systems
Stainless Steel	Excellent corrosion resistance, high temperature tolerance	Expensive, harder to process	Chemical, food, pharmaceutical plants
Copper	Hygienic, easy to fabricate	Poor resistance to acidic media, costly	Potable water, HVAC
PVC	Lightweight, inexpensive, easy to install	Limited to low temperature/pressure	Wastewater, drainage
CPVC	Higher temperature and chemical resistance than PVC	Limited in very high-pressure systems	Chemical processing, hot water
HDPE	Flexible, impact-resistant	Susceptible to UV degradation	Natural gas, water distribution

FLUID-PIPE INTERACTION: HYDRAULIC CONSIDERATIONS

Material choice also impacts hydraulic performance. Pressure drop across a system is often calculated using the Darcy–Weisbach equation:

ΔP = f · (L / D) · (ρv² / 2)

Where:
ΔP = pressure loss (Pa)
f = friction factor (from Moody chart)
L = pipe length (m)
D = pipe diameter (m)
ρ = fluid density (kg/m³)
v = fluid velocity (m/s)

Pipes with smoother surfaces (e.g., CPVC, HDPE) reduce friction losses compared to carbon steel, lowering pump energy requirements and overall operating costs.

CPVC VS. METAL PIPING SYSTEMS

In recent years, Chlorinated Polyvinyl Chloride (CPVC) has become a strong alternative to traditional metal pipes in chemical and water distribution systems.

Corrosion resistance: CPVC resists acids, bases, and chlorine-based chemicals, whereas carbon steel corrodes quickly.
Weight & installation: CPVC is lighter, easier to install, and requires simple solvent cementing rather than welding.
Thermal resistance: CPVC is safe up to 95–100 °C, while stainless steel withstands higher temperatures.
Cost: CPVC offers a lower total installed cost compared to stainless steel.

This makes CPVC an attractive option for industries prioritizing both performance and cost efficiency.

IMPACT ON MAINTENANCE AND OPERATING COSTS

Poor material selection leads to:

Frequent maintenance and unscheduled downtime
Higher pumping energy due to increased friction losses
Premature replacement of corroded or eroded pipelines
Greater total cost of ownership (TCO)

Conversely, choosing the right material extends service life, reduces operating costs, and ensures system safety and compliance.

CONCLUSION

Piping material selection should not be based solely on initial purchase cost. Fluid characteristics—temperature, pressure, chemistry, and particulate content—are the most critical factors. By carefully evaluating these parameters and comparing material performance, engineers can design piping systems that are safe, durable, and cost-effective.

Modern solutions like CPVC demonstrate that alternative materials can often outperform metals in terms of longevity, chemical resistance, and lifecycle cost savings.

25 August 2025

How to Maximize the Service Life of Ball Valves

Maintenance

Proactive maintenance practices can add years to the operational lifespan of ball valves.
Ball valves are essential components in fluid and gas control systems used across industries such as oil & gas, chemical processing, food and beverage manufacturing, machinery production, and automotive assembly and maintenance.

Compared to gate or globe valves, ball valves are often favored because they offer:

Compact, cost-efficient designs
Quick open/close operation
Reliable performance under high pressure, high volume, and high temperature
Strong resistance to corrosion and mechanical wear
Long service life
Compatibility with a wide range of industrial processes

Most ball valves are designed to require little to no maintenance and are eventually replaced once they reach the end of their service life. However, with the right preventive strategies, it is possible to extend their lifespan by several years, reducing both downtime and replacement costs.

FACTORS INFLUENCING BALL VALVE LIFESPAN

While manufacturers typically estimate the service life of a ball valve at 8–10 years, real-world performance can be extended with proper care. The following factors have the greatest impact:

ACTUATION METHOD
Selecting the correct actuation type improves safety, reduces maintenance expenses, and ensures optimal uptime. Pneumatic actuated ball valves, for example, are highly durable in high-pressure systems as long as a compressed air supply is available.

DESIGN
Ball valves are available in one-piece, two-piece, and three-piece configurations. One- and two-piece designs cannot be repaired—when they fail, they must be replaced. Three-piece designs allow for the removal and replacement of seals and seats without removing the entire valve from the system.

TEMPERATURE AND PRESSURE RATINGS
The closer the operating conditions are to the valve’s maximum temperature and pressure limits, the more frequently maintenance or replacement will be required. High-cycle and high-pressure applications put significantly more stress on valve components.

MEDIA CHARACTERISTICS
Ball valves are designed for clean fluids and gases. Any abrasive particles present in the media can damage the valve’s internal surfaces, leading to leaks or actuator failure.

MATERIAL SELECTION
Common valve body materials include stainless steel, brass, bronze, and PVC. While PVC offers cost advantages and chemical resistance for certain applications, metal valves provide superior durability, higher temperature resistance, and broader media compatibility.

WHY BALL VALVE MAINTENANCE MATTERS

Extended Lifespan – Valves that last longer reduce replacement frequency, minimize downtime, and improve operational efficiency.
Safety – Regular inspections and proper installation reduce the risk of accidents, leaks, or catastrophic failures.
Uninterrupted Production – Many maintenance tasks can be performed without halting operations, keeping production lines active.
Cost Savings – Preventive maintenance lowers the need for emergency repairs and avoids unplanned capital expenditure.

HOW BALL VALVES WORK

A ball valve uses a spherical ball with a central bore to control flow.

When the bore aligns with the flow path, the valve is open.
Rotating the ball 90 degrees closes the valve by blocking the passage.

This quarter-turn operation allows quick shut-off and easy visual confirmation of valve position, but can also cause water hammer if closed too quickly.

PREVENTIVE MAINTENANCE FOR BALL VALVES

To get the best performance and lifespan from ball valves, maintenance should begin before any issues appear. Key steps include:

CORRECT INSTALLATION
Proper installation by trained professionals ensures optimal alignment, sealing, and performance.

REGULAR CLEANING
Annual cleaning (or more often in dusty or dirty environments) prevents buildup that could impair performance.

Use compressed air or gas-based cleaners for metal components.
Use alcohol- or water-based cleaners for non-metal parts.

LUBRICATION
Use synthetic, water-resistant, oil-based lubricants to reduce wear and maintain smooth operation. Avoid clay- or solid-based lubricants that can accumulate in the valve cavity.

SCHEDULED INSPECTIONS
Inspections should be carried out at least once a year—or more frequently for high-pressure and high-cycle applications. Checks should include:

Tightness of all hardware
Corrosion or mineral buildup
Leak detection
Full range of motion testing
Position indicator accuracy
Adequate exhaust and filtration conditions in the surrounding area

ANNUAL OVERHAUL
During planned shutdowns, remove valves from service, disassemble them, clean all parts, and replace worn components, especially seals and seats.

CONCLUSION

By selecting the right materials, using appropriate actuation methods, and following a disciplined preventive maintenance plan, ball valves can operate reliably for many years beyond their standard expected lifespan. This not only saves money but also protects plant safety and ensures uninterrupted production.

22 August 2025

Selecting the Right Actuator for Industrial Butterfly Valves: Types, Features, and Key Criteria

Industrial Valves

In industrial fluid control systems, actuators play a vital role in the operation of butterfly valves. The right actuator ensures faster opening and closing cycles, allows for precise and incremental flow regulation, and ultimately improves overall system efficiency. By delivering the necessary torque, actuators make it possible to operate valves reliably, safely, and in a way that supports continuous operations.

Below is an overview of the main actuator types used in industrial butterfly valves, along with their applications and important selection factors.

MANUAL ACTUATORS

Manual actuators are the simplest type, operated using a handwheel, lever, or crank. They require no external power source and are ideal for systems where access is easy and automation is not necessary.

For larger butterfly valves, gear mechanisms are often used to increase torque, and advanced models may include analog position indicators for the valve disc.

Pros: Low cost, simple design, easy maintenance
Cons: Suitable only for smaller valves, slow actuation speed, limited use in critical pipelines

ELECTRIC ACTUATORS

Electric actuators use a bidirectional motor to open and close valves remotely. Integrated gearboxes reduce motor speed and increase torque output. These actuators are generally low-maintenance, energy-efficient, and operate quietly, making them suitable for process control in light-duty or non-critical applications.

Many electric actuators are equipped with limit switches to automatically stop the motor when the valve is fully open or closed.

Pros: Remote operation, quiet and clean operation, low power consumption
Cons: Requires a stable power supply, limited torque for heavy-duty applications

PNEUMATIC ACTUATORS

Pneumatic actuators operate using compressed air and can be single-acting (spring return) or double-acting. When air enters the actuator chamber, it moves a piston or plunger, producing linear or rotary motion that turns the valve disc.

These actuators are compact, lightweight, cost-effective, and provide rapid response times. They are widely used in frequently cycled pipelines such as gas distribution, steam lines, and slurry transport.

Pros: Fast actuation, lightweight, cost-efficient
Cons: Requires a dedicated compressed air supply

HYDRAULIC ACTUATORS

Hydraulic actuators are designed for large-diameter or high-pressure pipelines where high torque is essential. They operate using hydraulic oil or, in some cases, water. Available in both single-acting (spring return) and double-acting designs, hydraulic actuators can handle the most demanding industrial valve applications.

Pros: High torque capability, suitable for heavy-duty service
Cons: More complex maintenance, requires fluid management and leak prevention

FIVE KEY FACTORS TO CONSIDER WHEN CHOOSING A BUTTERFLY VALVE ACTUATOR

Duty Cycle: Indicates how frequently an actuator can operate before overheating or wearing out. Hydraulic actuators can operate with nearly a 100% duty cycle, ideal for high-frequency, high-pressure systems. Electric actuators may have lower duty cycles, around 25%, for intermittent operation.
Actuation Speed: Fast-acting actuators (hydraulic or pneumatic) are preferred for critical operations. Slow-operating actuators may be better for processes requiring gradual valve movement.
Process Media Characteristics: The type of fluid being handled—whether corrosive, toxic, or gaseous—determines actuator material requirements. The actuator housing should be as robust as or more durable than the valve body.
Safety and Redundancy: Fail-safe features, such as spring-return mechanisms, are essential in critical systems. For example, a fail-open hydraulic butterfly valve ensures the line remains uncontaminated in case of actuator failure.
Cost and Maintenance: Total cost includes purchase price, maintenance, and spare parts. Pneumatic actuators generally have longer service lives but require additional equipment like air compressors.

CONCLUSION

Choosing the right actuator for butterfly valves directly affects system performance, operational safety, and maintenance costs. Matching the actuator to system demands, fluid characteristics, and budget constraints ensures reliable operation, reduces downtime, and improves overall process efficiency.

21 August 2025

Overcoming IT/OT Convergence Barriers for Effective Predictive Maintenance in Process Manufacturing

Maintenance

Unlocking the full potential of predictive maintenance (PdM) in process industries requires information technology (IT) and operational technology (OT) to work seamlessly together. This article explains PdM’s business value, outlines three major IT/OT convergence challenges, and provides a practical roadmap to capture the right data and turn it into actionable insights.

WHY PREDICTIVE MAINTENANCE MATTERS

PdM continuously monitors equipment, analyzes real-time and historical data, and forecasts potential failures before they occur. This allows maintenance teams to schedule interventions during planned downtime, resulting in:

Reduced unplanned downtime → improved Overall Equipment Effectiveness (OEE)
Less wasted maintenance effort → focus on high-risk assets
Optimized spare parts inventory → reduced working capital tied up in stock

In short, PdM enhances safety, productivity, and financial performance. But achieving this requires accurate, contextualized data—and that’s where IT/OT convergence becomes essential.

THREE CORE IT/OT CONVERGENCE CHALLENGES

Challenge 1 — Connecting Control Systems

Process plants operate a patchwork of heterogeneous systems: PLCs, DCS, SCADA, MES, historians, CMMS, and more.

Proprietary and incompatible protocols (Modbus, Profibus/Profinet, EtherNet/IP, etc.)
Air-gapped or segmented networks for cybersecurity
Time synchronization and data timestamping issues (NTP/PTP)

Simply “plugging in a cable” doesn’t work. Secure, standards-based integration is required.

Challenge 2 — Capturing the Right Sensor Data

Control system sampling rates may be adequate for process control but insufficient for PdM analytics.
A pressure loop might sample at 1 Hz, while vibration analysis requires thousands of samples per second.
Overloading the control network is risky; edge processing can collect, filter, and summarize high-frequency data before sending it to IT systems.

Challenge 3 — Accessing Historical and Maintenance Data

Accurate predictions require combining real-time data + historical trends + maintenance records.
Historians store process time-series data
CMMS/EAM systems hold work orders, replaced components, and failure codes

Without integration, predictive models lack critical context.

DATA-FIRST ARCHITECTURE: TECHNOLOGY COMES SECOND

Successful PdM is not about installing technology first—it’s about designing around the right data. A practical roadmap includes:

Step 1 — Asset Audit and Goal Definition

Critical asset inventory (pumps, compressors, control valves, motors, bearings)
Risk and impact analysis (RPN, Pareto)
Desired prediction horizon and early-warning thresholds

Step 2 — Standards-Based Integration

Use OPC UA or MQTT for data exchange
Follow ISA-95 for IT/OT hierarchy, IEC 62443 for security
Implement synchronized timestamps via PTP/NTP
Apply NAMUR Open Architecture (NOA) principles for secure data extraction

Step 3 — Edge Computing & Data Pipeline

Protocol conversion, validation, and feature extraction at the edge
On-device analytics to reduce noise (e.g., RMS, kurtosis, envelope detection)
IT storage architecture with raw, curated, and feature data layers

Step 4 — Contextualization & Asset Modeling

Hierarchical mapping: tag → equipment → line → unit → plant
Asset models based on ISA-95/ISO 14224 to unify historian, CMMS, and live data
Link availability, speed, and quality metrics (OEE) to each asset

Step 5 — Smart Sensor Strategy

Data-rich: combine vibration, acoustic, temperature, and oil analysis
Data-limited: use command/feedback signals (open/close time, actuator current) for anomaly detection
Example: tracking increased open/close times on control valves to detect clogging or wear

Step 6 — Security and Governance

Network segmentation, role-based access control, DMZ zones
Data retention, model traceability, MLOps processes for drift detection
Change management and user training

WHY “RIGHT DATA” IS EVERYTHING

PdM’s accuracy depends on the quality and relevance of the input data.

Variety & context: Process, maintenance, and environmental data combined provide richer insights
Accuracy & synchronization: Misaligned timestamps weaken correlations
Continuity: New sensors need months to build a baseline; historian + CMMS context speeds this up

Goal: Extend prediction horizons from days to weeks for better resource planning.

APPLIED EXAMPLE: ANOMALY DETECTION ON CONTROL VALVES WITHOUT EXTRA SENSORS

Edge monitoring tracked open/close cycle times, command-response delays, and failed cycles
Gradual increases in cycle time indicated clogging or erosion
Failure patterns informed a prioritized maintenance list

Result: no unplanned shutdowns due to valve clogging, despite zero additional instrumentation.

IMPLEMENTATION TIMELINE (90 DAYS → 12 MONTHS)

0–30 Days | Discovery & Architecture

Asset mapping, data flow diagrams, security constraints
Define KPIs: MTBF, MTTR, OEE, prediction accuracy

30–90 Days | Pilot & Validation

Start with 1–2 asset families (pumps + control valves)
Implement edge data collection and minimal feature set
Validate early warning signals on the shop floor

3–6 Months | Scaling & Contextualization

Integrate historian + CMMS, develop asset model
Deploy dashboards and trigger work orders from PdM alerts

6–12 Months | Full Rollout & Optimization

Expand to multiple production lines, manage models via MLOps
Extend prediction horizons and track ROI

KEY METRICS & ROI TRACKING

Unplanned downtime reduction (%)
Early warning time (days/weeks)
False alarm rate (%)
Spare parts capital reduction (%)
Shift in maintenance hours from reactive to proactive

Metrics should be reviewed monthly, and models/sensor strategies recalibrated accordingly.

8) COMMON PITFALLS TO AVOID

Technology-first approach: Define business goals and data needs first
Centralizing all raw data: Summarize and filter at the edge
Ignoring cybersecurity: IEC 62443 compliance is essential
Leaving CMMS out: Without work order integration, alerts stay passive
Forgetting users: No PdM adoption without training and change management

CONCLUSION

Predictive maintenance in process manufacturing can extend asset life, reduce downtime, and enhance safety—but only if IT/OT convergence challenges are addressed methodically. Bridging the gaps in control system connectivity, high-quality sensor data, and historical/maintenance context with a data-first approach ensures PdM becomes a natural part of daily operations.

20 August 2025

Four Key Factors to Consider When Selecting Industrial Valves

Industrial Valves

In manufacturing and processing plants, complex systems often transport liquids, gases, or semi-solid slurries. To ensure these fluids move safely, efficiently, and without interruptions, the correct valves must be selected. A valve’s role in controlling pressure, flow rate, and direction directly affects process safety, operational efficiency, and equipment longevity.

An improperly selected valve can cause leaks, process inefficiencies, environmental hazards, and even serious workplace accidents. Choosing the right valve is not just a technical decision — it’s a strategic safety measure.

Below are critical factors every engineer and plant manager should evaluate when selecting industrial valves:

LINE PRESSURE

Not all fluid systems operate under the same pressure. For example, a high-pressure steam pipeline is vastly different from a low-pressure cooling water loop.

Line pressure refers to the force exerted across the valve body by the fluid.

Exceeding design pressure limits can damage seals, cause leaks, and compromise valve integrity.
Pressure drops across the valve should be minimized to avoid process inefficiencies. For constant-pressure applications, gate valves are preferred due to their low pressure loss, whereas globe valves are used where precise flow regulation is required.

Special cases:

Safety Relief Valves (SRV): The set pressure must be carefully determined to ensure safe system pressure release.
Check Valves: The cracking pressure — the minimum pressure at which the valve allows flow — should match process requirements.

FLOW RATE AND CONTROL

Different valve designs manage fluid movement in distinct ways. Understanding the purpose of the valve is essential:

Will it simply start/stop flow?
Will it precisely regulate flow rate?
Will it change flow direction?

On/Off Applications:

Ball Valves: Fast operation, low pressure loss, excellent sealing.
Gate Valves: Slower actuation, better for reducing water hammer.
Butterfly Valves: Lightweight, compact, and quick to operate.

Precise Flow Control:

Needle Valves: Ideal for gas calibration or low-flow liquids.
V-Port Ball Valves: Provide linear control with low pressure drop.
Globe Valves: Allow gradual adjustments and different flow configurations.

Directional Control:

Check Valves: Allow flow in one direction only.
Multi-Port Valves (e.g., 3-way ball valves): Redirect flow between multiple lines.

TEMPERATURE RESISTANCE

Temperature affects both the medium flowing through the valve and the valve components themselves. High temperatures can cause expansion and seal deformation, while low temperatures can make materials brittle.

Material selection is critical:

Stainless Steel: Suitable for many applications up to 200–400 °C.
Nickel Alloys: Excellent for high-temperature and corrosive conditions.
PTFE (Teflon) Seats: Wide temperature range tolerance.
EPDM Rubber Seats: Good for moderate temperatures but limited in extreme heat.

Valves are categorized by temperature class according to standards and materials used. For cryogenic or extremely high-temperature applications, special designs are required.

BUDGET AND TOTAL COST OF OWNERSHIP

The real cost of a valve includes purchase price, installation, maintenance, and downtime costs.

Factors affecting cost:

Simpler designs (e.g., gate valves) are often cheaper but may not provide the best sealing.
Adding automation (actuators) increases upfront cost but improves long-term efficiency and reduces human error.
Hydraulic Actuators: High force and fast operation for large valves, but more complex maintenance.
Pneumatic Actuators: Safe for hazardous environments, but less precise.
Electric Actuators: Compact and cost-effective, suitable when slower operation is acceptable.

MATCHING VALVE TYPE AND MATERIAL TO THE APPLICATION

Choosing the right valve type is only part of the decision. The fluid’s chemical properties, toxicity, and corrosiveness determine the most suitable materials for both the valve body and sealing components. Extreme temperature or pressure ranges will further narrow down the choices.

CONCLUSION: SAFE AND EFFICIENT OPERATIONS DEPEND ON THE RIGHT VALVE

In industrial operations, valve selection is directly linked to safety, efficiency, and cost optimization. By carefully evaluating line pressure, flow control, temperature resistance, and budget, companies can ensure safer processes, lower maintenance costs, and longer equipment life.

For critical applications, always work with valve specialists and follow relevant industry standards to achieve optimal sizing, performance, and reliability.

20 August 2025

Five Best Practices to Enhance Process Valve Safety in Manufacturing Facilities

Frontpage Article, Process Valve

In industrial environments, process valves are essential for controlling the flow of liquids and gases, ensuring safe, efficient, and continuous operations. However, selecting the wrong valve type, improper installation, or neglecting maintenance can lead to severe workplace accidents, environmental hazards, and costly downtime. For this reason, process engineers and maintenance teams must adopt a systematic approach to keep valve safety at the highest level.

Below are five critical strategies to improve the safety and performance of process valves in manufacturing plants.

OPTIMIZE THE VALVE SELECTION PROCESS

Safety starts with choosing the right type, size, and material for each valve application. An incorrectly selected valve may fail prematurely due to high pressure, extreme temperatures, chemical corrosion, or vibration.

Key factors to consider:

Media Properties: Viscosity, chemical composition, corrosiveness, and flammability all directly affect valve performance.
For example, pipelines carrying acids require stainless steel or PTFE-lined valves.
Pressure and Temperature Ratings: Ensure the valve matches the system’s maximum operating limits.
Fail-Safe Position: Determine whether the valve should default to an open or closed position during a power failure.
Automation Compatibility: Manual valves may be sufficient for low-risk lines, while critical systems benefit from automated solutions.

💡 Engineering Tip: Beyond catalog data, conduct a HAZOP (Hazard and Operability) analysis to evaluate process dynamics and potential failure scenarios before finalizing valve selection.

INVEST IN AUTOMATED PROCESS VALVES

Manual valve operation is prone to human error, which can introduce significant safety risks in critical lines. Automation not only increases operational accuracy but also enhances plant safety.

Benefits of automation:

Faster Response: Enables rapid opening or closing during emergencies.
Remote Operation: Reduces the need for personnel to work in hazardous areas.
Real-Time Monitoring: Tracks parameters such as pressure, temperature, and flow to detect anomalies early.
Reduced Human Error: Eliminates timing mistakes associated with manual operation.

💡 Example: In a chemical plant, a pneumatically actuated safety valve can automatically shut down a line during overpressure events, preventing potential explosions.

FOLLOW PROPER INSTALLATION AND HANDLING STANDARDS

Incorrect installation or rough handling can damage valves, leading to leaks, misalignment, and premature failures.

Installation best practices:

Correct Orientation: Match valve design to the pipeline’s orientation (horizontal vs. vertical).
Vibration Control: Use supports and dampers to minimize vibration.
Torque Accuracy: Tighten fasteners to manufacturer-recommended torque values to avoid misalignment or cracks.
Cleanliness: Remove debris from the pipeline before installation.
Safe Lifting: Use lifting lugs or hoists for heavy valves to avoid surface damage.

📌 Storage Note: Keep valves in a clean, dry environment before installation, and protect flange faces with covers.

IMPLEMENT REGULAR INSPECTION AND MAINTENANCE

A valve that appears functional can still fail unexpectedly if maintenance is neglected. A proactive maintenance program is essential to avoid unplanned downtime.

Maintenance checklist:

Visual Inspection: Check for cracks, corrosion, and leaks.
Function Testing: Verify smooth operation for full open and close.
Seal and Packing Replacement: Change worn sealing elements promptly.
Actuator Checks: Inspect pneumatic or electric actuators for proper function.
Lubrication: Follow manufacturer guidelines for moving parts.

💡 Smart Maintenance Tip: Install IoT-enabled sensors on critical valves to collect real-time performance data and trigger alerts when maintenance is due.

PROVIDE COMPREHENSIVE TRAINING AND AWARENESS PROGRAMS

Technical solutions alone cannot guarantee safety—well-trained personnel are equally important. Skilled technicians and operators can detect risks earlier and take corrective action faster.

Training program essentials:

Valve types and applications
Standard operating procedures (SOPs)
Early fault detection methods
Emergency response protocols
Digital monitoring system usage

📌 Recommendation: Hold refresher training annually, and provide special onboarding for new equipment.

CONCLUSION

Process valve safety is not just an equipment concern—it directly impacts plant efficiency, environmental responsibility, and worker safety. The combination of proper selection, correct installation, regular maintenance, automation integration, and ongoing training creates a foundation for safe, reliable, and efficient manufacturing operations.

19 August 2025
