Energy Efficiency and Optimization Methods in Natural Gas Pressure Reduction Stations

,

Natural gas pressure reduction stations (PRS) are critical facilities that reduce the high-pressure gas delivered through transmission pipelines to safe levels for city networks and industrial plants. However, these operations involve significant energy consumption—mainly from heating systems, regulators, compressors, and control equipment. Rising energy costs and global commitments to reduce carbon emissions make energy efficiency and optimization strategies essential for modern PRS facilities.

Energy Efficiency and Optimization Methods in Natural Gas Pressure Reduction Stations



SOURCES OF ENERGY CONSUMPTION

Regulators and Heating Systems
When natural gas pressure is reduced, it experiences cooling due to the Joule–Thomson effect. To prevent condensation and freezing in downstream pipelines, gas heaters are used. These heating systems are often the largest energy consumers in PRS.

Compressors and Pumps
Some stations employ pumps or compressors to maintain pressure balance or direct gas toward measurement systems. These units significantly contribute to electrical energy consumption.

SCADA and Automation Systems
Although their share is smaller, SCADA servers, sensors, and controllers add to the station’s continuous energy load.

METHODS FOR IMPROVING ENERGY EFFICIENCY

Waste Heat Recovery Systems
By recovering heat from exhaust gases or flue gases, PRS can reduce the energy demand of heating systems. Heat recovery exchangers are increasingly being adopted to improve efficiency.

High-Efficiency Heaters
• Condensing boilers and high-performance heat exchangers offer up to 15–20% higher efficiency compared to conventional units.
• In some European PRS facilities, heat exchanger-based systems have replaced electric heaters, cutting costs and emissions.

Power Generation from Pressure Energy (Turboexpanders)
As natural gas expands from high to low pressure, it carries significant potential energy, which can be harnessed using turboexpanders.
• Benefit: Electricity production for station self-consumption or supply to the grid.
• Capacity: Installations can generate 10–20 MW of power, depending on flow and pressure conditions.

Preventing Gas Leaks
Even minor leaks from valves, seals, or joints cause substantial energy losses over time. Leak flow rates can be calculated using the orifice equation:
Q = Cd · A · √(2 · ΔP / ρ)
Routine tightness testing and predictive maintenance help eliminate such inefficiencies.

Smart Control Algorithms
• By integrating AI-driven optimization into SCADA systems, PRS facilities can minimize unnecessary heating and energy losses.
• Example: Adjusting regulator valve operation in gradual steps prevents sudden cooling, thereby reducing heater load.

ENGINEERING CALCULATIONS

Energy Released During Pressure Reduction
W = ṁ · R · T · ln(Pin / Pout)
• ṁ: Mass flow rate (kg/s)
• R: Gas constant (J/kg·K)
• T: Absolute temperature (K)
• Pin, Pout: Inlet and outlet pressure (Pa)
This formula is commonly used to estimate the electrical generation potential of turboexpander systems.

Heat Consumption for Gas Reheating
Q = ṁ · Cp · ΔT
• Cp: Specific heat capacity of gas
• ΔT: Required temperature increase

REAL-WORLD APPLICATIONS

• Turkey: BOTAŞ city gate stations are implementing condensing boiler systems to lower heating demand.
• Europe (Italy, Germany): Turboexpanders are installed in several PRS to generate millions of kWh annually from pressure energy.
• Japan: AI-based SCADA systems have enabled 15–20% reductions in energy use in PRS operations.

CONCLUSION

Energy efficiency in natural gas pressure reduction stations is both an economic opportunity and an environmental necessity. Strategies such as:
• Efficient valves and heaters
• Heat recovery systems
• Turboexpander-based power generation
• Leak prevention and smart automation
can deliver up to 20% energy savings.
In the future, the integration of artificial intelligence and digital twin technology is expected to push energy optimization in PRS even further, ensuring both cost savings and environmental benefits.

The Benefits of Combined Heat and Power (CHP) Systems for Commercial and Industrial Facilities

,

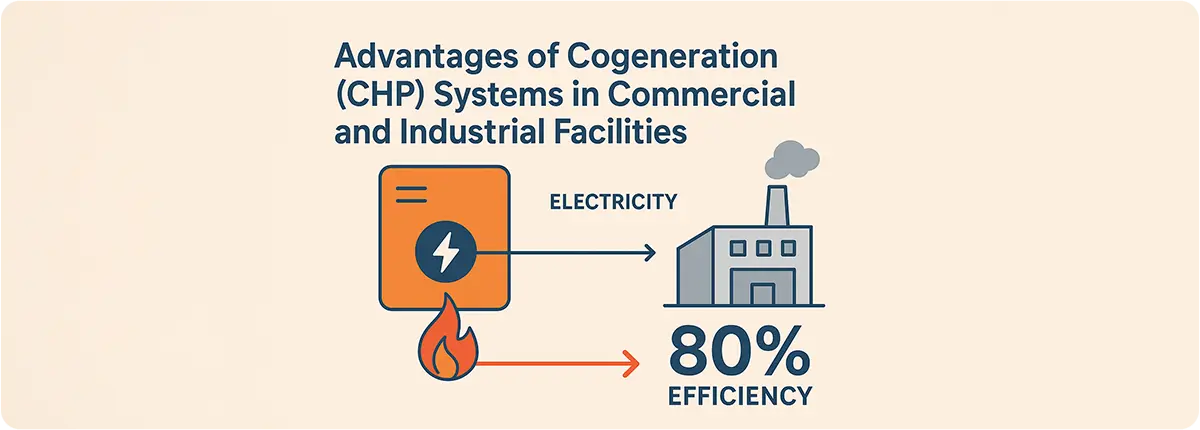

As energy costs rise and sustainability becomes a priority, commercial and industrial facilities are looking for smarter ways to manage their energy use. Combined Heat and Power (CHP) systems have emerged as one of the most effective solutions. By generating both electricity and useful thermal energy from the same fuel source, CHP systems can achieve efficiencies of more than 80%, far surpassing conventional power generation.

Combined Heat and Power (CHP)

HIGHER ENERGY EFFICIENCY

In conventional systems, electricity is generated in a power plant and heat is produced separately in boilers. Much of the heat from electricity generation is wasted. CHP systems capture and reuse this heat for hot water, steam, or even cooling through absorption chillers.

  • Efficiency Comparison:
  • Traditional electricity + boiler system: 45–50% efficiency
  • CHP system: 75–85% efficiency

This integrated approach lowers fuel consumption, which directly translates into reduced operating costs.

COST SAVINGS

Energy costs represent a significant portion of operating expenses in both commercial and industrial settings. CHP systems reduce utility bills by producing power on-site and reusing waste heat.

They also insulate facilities from electricity price volatility by reducing dependence on the grid. Over time, the Total Cost of Ownership (TCO) for CHP is lower compared to conventional solutions, making it a financially sustainable investment.

ENERGY SECURITY AND RELIABILITY

For facilities where uptime is critical, power interruptions can be costly or even dangerous. CHP provides:

  • On-site generation to reduce reliance on the grid
  • Backup power capabilities for mission-critical operations
  • Scalable solutions that adapt to changing energy demands

Hospitals, data centers, and manufacturing plants benefit particularly from the reliability and resilience that CHP systems provide.

ENVIRONMENTAL AND SUSTAINABILITY ADVANTAGES

CHP supports corporate sustainability goals by reducing emissions and maximizing fuel efficiency.

  • Lower fuel use = reduced CO₂ emissions
  • Waste heat recovery = smaller carbon footprint
  • Compatibility with renewable fuels such as biogas or biomass

As more organizations pursue carbon reduction targets, CHP provides a practical pathway toward meeting those goals.

FLEXIBILITY ACROSS APPLICATIONS

CHP systems are adaptable to many different facility types and scales:

  • Commercial buildings: hotels, office complexes, shopping centers
  • Industrial sites: chemical plants, textile mills, food and beverage facilities
  • Campus and district energy systems: universities, hospitals, municipalities

This versatility makes CHP an attractive solution for a wide range of industries.

CONCLUSION

Combined Heat and Power (CHP) systems offer a powerful combination of efficiency, cost savings, energy security, and environmental benefits. By capturing and reusing heat that would otherwise be wasted, facilities can significantly reduce fuel consumption, lower emissions, and protect themselves from energy price volatility.

For commercial and industrial operations seeking to remain competitive while meeting sustainability targets, CHP provides a proven, future-ready solution.

The Importance of Fluid Characteristics in Piping Material Selection

,

In industrial process systems, piping materials are more than just conduits for transporting fluids. They directly influence system reliability, efficiency, safety, and long-term operating costs. While cost and mechanical strength are important, the most critical factor in selecting the right pipe material is the nature of the fluid being transported.

Improper material selection can lead to premature failures, corrosion, high maintenance costs, and even safety hazards. This article explores how fluid characteristics impact material selection, compares common pipe materials, and provides engineering insights to ensure long-lasting piping systems.

Right Product

HOW FLUID PROPERTIES AFFECT PIPE MATERIAL SELECTION

Each fluid has unique physical and chemical properties that determine material compatibility. The most influential factors are:

  • Temperature (T): Materials expand or weaken at elevated temperatures. A pipe must maintain strength and tightness across the entire operating range.
  • Pressure (P): Internal pressure resistance is defined by hoop stress, calculated as:
    σ = (P · D) / (2 · t)
    Where:
    σ = hoop stress (MPa)
    P = internal pressure (Pa or bar)
    D = pipe outside diameter (mm)
    t = wall thickness (mm)
  • Chemical compatibility: Acids, bases, solvents, and chlorinated media require corrosion-resistant materials.
  • Presence of solids: Fluids with abrasive particles accelerate erosion and shorten service life.
  • Viscosity & density: Higher viscosity fluids increase friction losses, requiring more pumping energy.

COMPARISON OF COMMON PIPING MATERIALS

The table below summarizes the advantages and limitations of frequently used piping materials:

Material Advantages Limitations Typical Applications
Carbon Steel High pressure resistance, low cost Prone to corrosion, heavy Steam lines, mechanical systems
Stainless Steel Excellent corrosion resistance, high temperature tolerance Expensive, harder to process Chemical, food, pharmaceutical plants
Copper Hygienic, easy to fabricate Poor resistance to acidic media, costly Potable water, HVAC
PVC Lightweight, inexpensive, easy to install Limited to low temperature/pressure Wastewater, drainage
CPVC Higher temperature and chemical resistance than PVC Limited in very high-pressure systems Chemical processing, hot water
HDPE Flexible, impact-resistant Susceptible to UV degradation Natural gas, water distribution

FLUID-PIPE INTERACTION: HYDRAULIC CONSIDERATIONS

Material choice also impacts hydraulic performance. Pressure drop across a system is often calculated using the Darcy–Weisbach equation:

ΔP = f · (L / D) · (ρv² / 2)

Where:
ΔP = pressure loss (Pa)
f = friction factor (from Moody chart)
L = pipe length (m)
D = pipe diameter (m)
ρ = fluid density (kg/m³)
v = fluid velocity (m/s)

Pipes with smoother surfaces (e.g., CPVC, HDPE) reduce friction losses compared to carbon steel, lowering pump energy requirements and overall operating costs.

CPVC VS. METAL PIPING SYSTEMS

In recent years, Chlorinated Polyvinyl Chloride (CPVC) has become a strong alternative to traditional metal pipes in chemical and water distribution systems.

  • Corrosion resistance: CPVC resists acids, bases, and chlorine-based chemicals, whereas carbon steel corrodes quickly.
  • Weight & installation: CPVC is lighter, easier to install, and requires simple solvent cementing rather than welding.
  • Thermal resistance: CPVC is safe up to 95–100 °C, while stainless steel withstands higher temperatures.
  • Cost: CPVC offers a lower total installed cost compared to stainless steel.

This makes CPVC an attractive option for industries prioritizing both performance and cost efficiency.

IMPACT ON MAINTENANCE AND OPERATING COSTS

Poor material selection leads to:

  • Frequent maintenance and unscheduled downtime
  • Higher pumping energy due to increased friction losses
  • Premature replacement of corroded or eroded pipelines
  • Greater total cost of ownership (TCO)

Conversely, choosing the right material extends service life, reduces operating costs, and ensures system safety and compliance.

CONCLUSION

Piping material selection should not be based solely on initial purchase cost. Fluid characteristics—temperature, pressure, chemistry, and particulate content—are the most critical factors. By carefully evaluating these parameters and comparing material performance, engineers can design piping systems that are safe, durable, and cost-effective.

Modern solutions like CPVC demonstrate that alternative materials can often outperform metals in terms of longevity, chemical resistance, and lifecycle cost savings.
