Helical Rotor Flowmeters and Industrial Applications

,
Estimated Reading Time: 2 minutes

Helical rotor flowmeters are a special type of positive displacement flowmeter. They operate based on the principle of axial helical rotors being rotated by the fluid flow. Each rotation of the rotor represents a fixed and known volume, ensuring high accuracy and repeatability. They are widely used in petroleum, chemical, pharmaceutical, and food industries, particularly for measuring high-viscosity fluids.

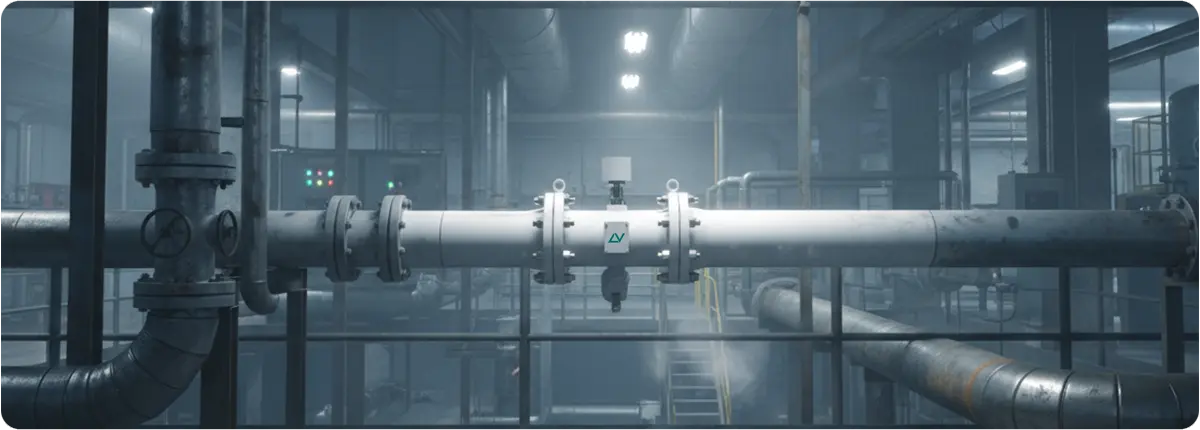

Helical Rotor Flowmeters

WORKING PRINCIPLE

As the fluid passes through the meter, it causes the helical rotors to rotate axially. The rotation displaces a fixed volume of fluid, which is measured to calculate volumetric flow.

Basic equation:
Qv = n · Vc
Qv: volumetric flow rate (m³/s)
n: rotor rotation frequency (Hz)
Vc: displaced volume per rotation (m³).

Helical rotor flowmeters are less affected by fluid density and viscosity, providing stable and accurate performance.

STRUCTURAL FEATURES

  • Body materials: stainless steel, cast iron, aluminum
  • Measuring elements: helical (screw-type) rotors
  • Output signals: magnetic pickup, pulse, digital signals
  • Low pressure drop
  • Excellent performance with high-viscosity fluids

ADVANTAGES AND LIMITATIONS

Advantages:

  • High accuracy (±0.2% – ±0.5%)
  • Reliable performance at low flow rates
  • Suitable for viscous and dense fluids
  • Minimal pressure loss

Limitations:

  • Moving parts require maintenance
  • Reduced lifespan with abrasive fluids
  • Less suitable for fluids containing solid particles

APPLICATION AREAS

  • Fuel and oil measurement
  • Polymer and solvent monitoring in chemical industries
  • Syrup, molasses, and honey measurement in food industry
  • Precise dosing in pharmaceutical applications
  • Lubrication systems in energy and automotive sectors

STANDARDS AND CALIBRATION

  • OIML R 117: Standard for liquid measuring devices
  • ISO/IEC 17025: Calibration laboratory accreditation
  • ATEX-certified models for explosive environments
  • Regular calibration is necessary to maintain accuracy

CONCLUSION

Helical rotor flowmeters play a vital role in industries requiring precise measurement of high-viscosity fluids. With their robust design, low pressure drop, and reliable accuracy, they provide long-term and dependable solutions for demanding industrial applications.
